NM-SERIES

NOISE MONITORING

ENVIRONMENTAL MONITORING
NOISE

OVERVIEW

Our Noise Monitoring Series combines the power of the NM20 (Noise Sensor) and the NM60 (Noise Hub) to provide a scalable, real-time noise monitoring and alerting system for industrial, manufacturing, and high-noise work environments.

This integrated system is ideal for large-scale noise management, allowing real-time monitoring, proactive hearing protection enforcement, and seamless expansion as operational needs grow.

SENSING CAPABILITIES

NOISE

Customizable Db thresholds + Visual Alerts

Equivalent Continuous A-weighted Sound Pressure Level (LAeq) measurement

Time-Weighted Average (TWA) over 8-hour shifts (optional models)

PROTECT HEARING

LED VISUAL ALERTS

SCALABLE NOISE MANAGEMENT

MONITORING & REPORTING

CONTINUOUS DB MEASURING

ENVIRONMENTAL MONITORING

NOISE MONITOR SYSTEM

NM-SERIES

BACK

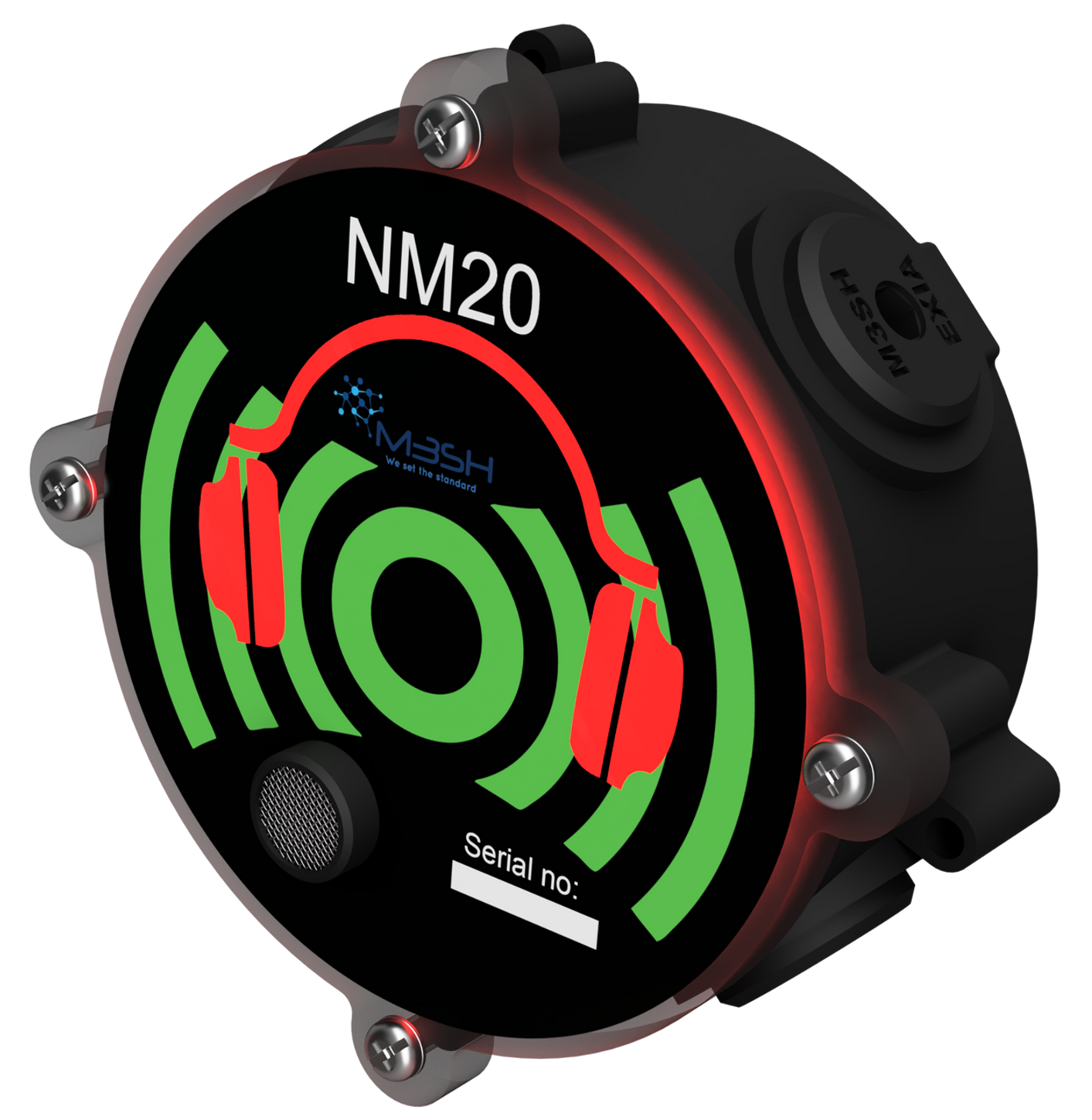

NM20

NOISE MONITORING SENSOR

Detect hazardous noise levels with continuous measurement of ambient noise levels and provides local visual alerts to workers.

FEATURES

REAL-TIME, IN-FIELD MONITORING

Accurate, real-time, in-field ambient noise monitoring

INSTANT VISUAL ALERTS

Local visual alerts after pre-set thresholds are exceeded (flashing red LED headphones alert employee to wear hearing protection0n).

USER-FRIENDLY

Customizable warning thresholds

INTEGRATABLE & SCALABLE

Functions as stand-alone unit or as part of a broader network when linked to the NM60

INTEGRATABLE & SCALABLE

Optional RS485, relays, and wireless communication for advanced integration

SENSING CAPABILITIES

Customizable Db thresholds trigger visual alerts
Equivalent Continuous A-weighted Sound Pressure Level (LAeq) measurement
Time-Weighted Average (TWA) over 8-hour shifts (optional models)

TECHNICAL SPECIFICATIONS

Power Supply: 115/230 VAC (standard); 9–24 VDC for Intrinsic Safe model
Power Consumption: Typical 3W, Maximum 5W
Communication Options (for NM20 with comms model):
- RS485 Modbus RTU
- Wireless communication to Gateway (up to 500m range)
Relay Contacts: Up to 250 VAC / 30 VDC, 6 A
Measurement Units: Decibels (dB)
Compliance: Refer to Certification Documents
Warranty: 1-year warranty with 12-month service life (6 months in harsh environments)

COMPLIANCE & WARRANTY

Intrinsically Safe model available (NM20 – ExiA)
Complies with occupational health and safety standards for industrial noise exposure
Certification documents available upon request
Warranty: 1 year warranty with 12-month service life (6 months in harsh environments)

INDUSTRY APPLICATION

NM60

CENTRAL MONITORING HUB

The NM60 acts as the primary tracking point of all connected NM20 sensors, processing real-time noise levels from the connected NM20 sensors into visual alerts.

OVERVIEW

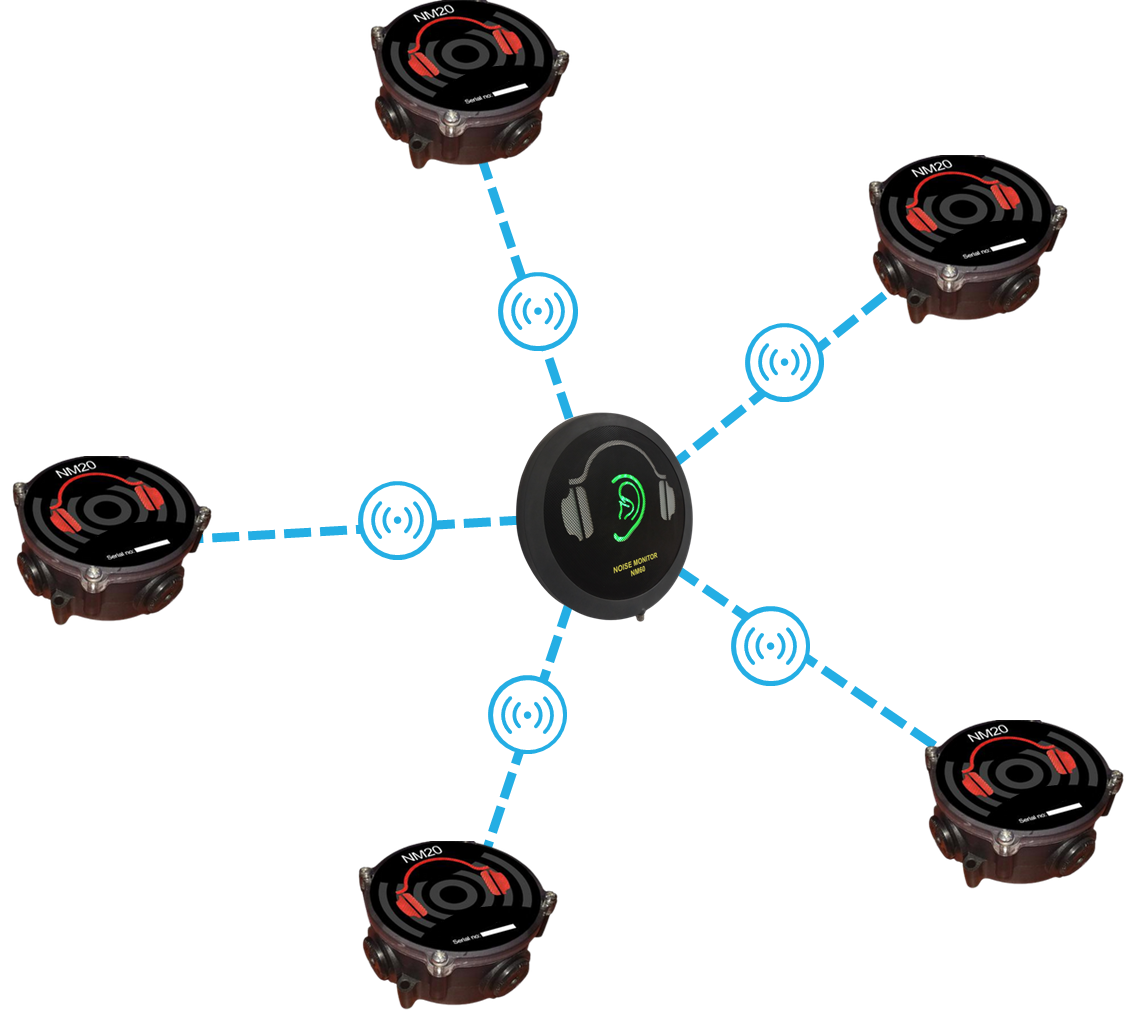

The NM60 functions as a central noise monitoring hub that aggregates real-time data from up to 10 x NM20 Sensors simultaneously via wireless communication (up to 100 meters per sensor), providing a central visual warning point for employees before they enter high-noise zones, such as workshops, plants, or large production areas.

Central Noise Tracking & Display:
- Primary point for real-time noise level tracking, reporting, and system-wide awareness from all connected NM20 sensors.
- Positioned at access points of large areas to warn employees of high noise levels before they enter.
