GLOBAL HEALTH & SAFETY
ENVIRONMENTAL MONITORING
Real-time detection, monitoring, reporting, and control solutions that keep employees and environments safe and healthy from risk of various toxic gas, chemicals, smoke, fire and other dangerous environmental conditions. Each of our environmental monitors offers unique sensing capabilities customizable to suit your needs in any environment.
TOXIC GAS, CHEMICALS, SMOKE & FIRE
DUST, DPM, CO2, CO, SOx, CH4, PM1-10, EC
DIESEL PARTICULATE MONITORING
QUICK OVERVIEW
SMART LASER SENSING
- Intelligent laser particle counting for PM1.0, PM2.5, PM10
- Real-time data on TWA (time-weighted average)
USER-FRIENDLY & LOW MAINTENANCE
- Self-cleaning, minimal maintenance (no pumps or filters)
- No user-serviceable parts – designed for long life and low service requirements
- Integrated 5” colour TFT LCD-display with visual indicators
- User-friendly SCADA interface with real-time monitoring
- Mobile and fixed installation options
ACCURATE & CONNECTED
- IoT-enabled with wireless and wired data transfer
- Compatible with automated dust suppression and ventilation systems
- Dust impactor and cyclone separation for enhanced accuracy

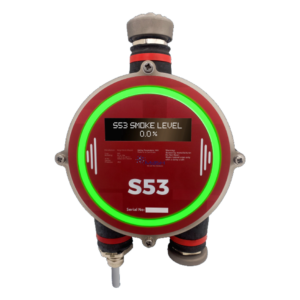

EARLY SMOKE & FIRE DETECTION: S53
The S53 detects the earliest chemical signs of overheating, smoldering materials, and developing fire conditions. COx, MOS, SO₂, CO, CO2, VOC sensing.
QUICK OVERVIEW
REAL-TIME RELIABLITY
- Continuously analyzes multiple combustion-related gases and environmental parameters using advanced sensor fusion algorithms
- False alarm discrimination
- Real-time data monitoring for dashboards, plant systems, or remote supervision
ROBUST & RELIABLE
- 5-Year Sensor Life
USER-FRIENDLY & LOW MAINTENANCE
- Up to 2 years between calibrations
- Bump-test kit available
- Low Maintenance and cleaning
- Compact and easy wireless connection
VISUAL & AUDIBLE ALERTS
- Local visual alarm indication via multi-colour LED status ring
- Audible alarm indication via onboard buzzer
- Relay outputs for alarm, warning, or system status
DUST PARTICULATE MANAGEMENT
The D52 is designed for use in mining, manufacturing and construction, where the concentration and variability of airborne dust particles (PM1.0, PM2.5 & PM10.0) pose significant operational and health risks.
QUICK OVERVIEW
REAL-TIME MONITORING & REPORTING
- Easy to read data readings and range limits display on an LCD-display: Time-weighted average (TWA) and particulate matter measured for 1μm, 2.5μm, and 10μm.
CONFIGURABLE WIRED/WIRELESS REPORTING
- SCADA Software enabled, including particulate matter readings per field unit and dust size grouping
- Site-specific and remote connection options
- Reliable data transfer via wired or wireless options:
- Wired: RS485 (Modbus-RTU)
- Wireless: IoT Network, Private 5G, GSM
- Configurable to activate automated ventilation and dust suppression systems
- Response time: <60 seconds
ACCURATE & CONNECTED
- IoT-enabled with wireless and wired data transfer
- Compatible with automated dust suppression and ventilation systems
- Dust impactor and cyclone separation for enhanced accuracy
EARLY SMOKE & FIRE DETECTION
The S50 guarantees reliable early smoke and fire detection. Its easy integration activates an automatic fire suppression system to safeguard people, the environment and your assets. MOS, SO₂, CO, CO2, VOC sensing.
QUICK OVERVIEW
REAL-TIME MONITORING & FALSE ALARM DISCRIMINATION
- Accurate, real-time, in-field measurements of hazardous gas ambient temperature and humidity
- Follows NIOSH standards to reduce false alarms (Unlike traditional systems that rely on ionization or optical sensor
CONVEYER BELT WEAR DETECTION
- Achromatic detection: Proactive SO₂ and CO monitoring from high heat production caused by belt degradation, enabling early intervention before significant damage or risks arise.
MULTI-SENSING CAPABILITIES
- MOS, SO₂, CO, CO2, VOC, Temperature, Relative Humidity
AUDIBLE & VISUAL ALERTS
- 16 x 2 OLED Display to easily see measurements
- 360° Configurable RGBY Strobe light to indicate alarm and no alarm
BATTERY BACK-UP
- Built-in battery back-up (up to 8 hours)
- Automatic charging when connected to a supply line
USER-FRIEDNLY & ROBUST
- IP65 Rated (water & dust tight)
- Operating temperatures range from -20°C to 70°C
- Easy to install
WIRELESS/WIRED COMMUNICATION
- RS485, Modbus-RTU
- IoT
- Private 5G Enabled
- Built on open-integration standards
MULTI-ENVIRONMENTAL MONITORING
The P50 is an advanced multi-functional, multi-sensor device that monitors environmental factors (CO2, CO, CH4, VOC, humidity, air velocity, Ambient Temperature), especially in extreme and hazardous environments (explosives and gaseous atmospheres).
QUICK OVERVIEW
REAL-TIME, IN-FIELD MONITORING
- Accurate, real-time, in-field monitoring, analyzing and reporting
USER-FRIENDLY & LOW MAINTENANCE
- Self-cleaning & minimal maintenance
- Integrated 16 x 2cm OLED display
- Communication to control room via SCADA software platform
ACCURATE & CONNECTED
- IoT and Private 5G Enabled
- Easy data transfer via RS485
AUDIO & VISUAL ALERTS
- Alarm alert maximum: 93dB level
- 360° RGBY LED Strobe light
BATTERY BACK-UP
- 8 Hour battery back-up
ROBUST & RELIABLE
- Durably manufactured for harsh environments
- Operating temperatures range from -40 to +70 °C
ENVIRONMENTAL CONDITIONS
NOISE, AIR QUALITY, WIND SPEED, HUMIDITY, TEMPERATURE
AIR VELOCITY MONITORING
The P511 is our state of the art air velocity monitor, offering precise digital wind-speed measurements, with audible and visual indications and alerts.
QUICK OVERVIEW
REAL-TIME MEASUREMENTS
- Accurate: real-time air-velocity measurements
- Response time: non-IS & Mains: 30 sec, EX ia:120 sec
- Sensor range: 0 to 10m/s
- Operating range: 0 to 10m/s
ACCURATE & CONNECTED
- Precise digital wind-speed measurements
AUDIBLE & VISUAL ALERTS
- Optional Audible (93dB) alert at configurable, pre-set levels
- 360° Red red (alarm) and green (no alarm) light indication on device
ROBUST
- Platinum sensors for long-term reliability in harsh environments
- Operating temperatures range from -10°C to 50°C
WIRELESS/WIRED COMMUNICATION
- RS485, Modbus-RTU
- IoT
- Private 5G Enabled
- Built on open-integration standards

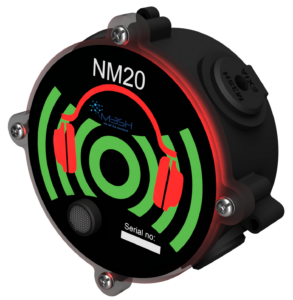

NOISE MONITORING
QUICK OVERVIEW
REAL-TIME MONITORING
- Real-time sound level measuring and reporting for up to 10 NM20 sensors
- 8-Hour time-weighted average tracking
AUDIBLE & VISUAL ALERTS (IN-FIELD)
- Optional Audible (93dB) alert at configurable, pre-set levels
- 360° Red red (alarm) and green (no alarm) light indication on device
ROBUST
- Platinum sensors for long-term reliability in harsh environments
- Operating temperatures range from -10°C to 50°C
WIRELESS/WIRED COMMUNICATION
- RS485, Modbus-RTU
- IoT
- Private 5G Enabled
- Built on open-integration standards
MULTI-ENVIRONMENTAL MONITORING
The P50 is an advanced multi-functional, multi-sensor device that monitors environmental factors (Humidity, Air Velocity, Ambient Temperature, CO2, CO, CH4, VOC), especially in extreme and hazardous environments (explosives and gaseous atmospheres).
QUICK OVERVIEW
REAL-TIME MONITORING & FALSE ALARM DISCRIMINATION
- Accurate, real-time, in-field measurements of hazardous gas ambient temperature and humidity
- Follows NIOSH standards to reduce false alarms (Unlike traditional systems that rely on ionization or optical sensor
CONVEYER BELT WEAR DETECTION
- Achromatic detection: Proactive SO₂ and CO monitoring from high heat production caused by belt degradation, enabling early intervention before significant damage or risks arise.
MULTI-SENSING CAPABILITIES
- MOS, SO2, CO, CO2, VOC, Temperature, Relative Humidity
AUDIBLE & VISUAL ALERTS
- 16 x 2 OLED Display to easily see measurements
- 360° Configurable RGBY Strobe light to indicate alarm and no alarm
BATTERY BACK-UP
- Built-in battery back-up (up to 8 hours)
- Automatic charging when connected to a supply line
USER-FRIEDNLY & ROBUST
- IP65 Rated (water & dust tight)
- Operating temperatures range from -20°C to 70°C
- Easy to install
WIRELESS/WIRED COMMUNICATION
- RS485, Modbus-RTU
- IoT
- Private 5G Enabled
- Built on open-integration standards
