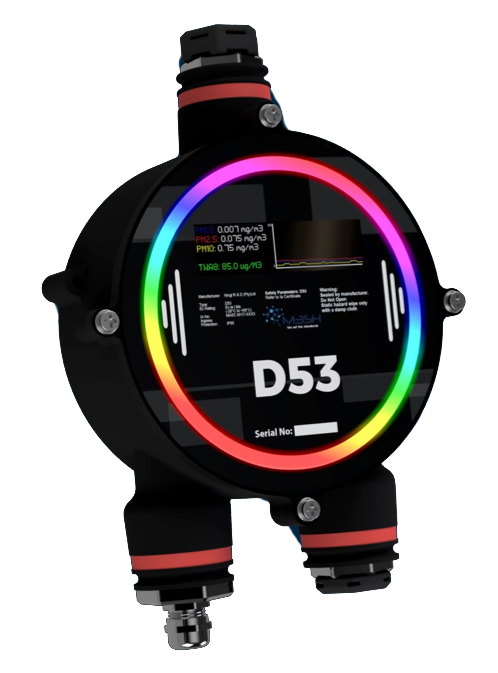

D53

DUST MONITOR

ENVIRONMENTAL MONITORING
D-SERIES

OVERVIEW

The D53 is an industrial dust and air quality monitor that offers real-time monitoring of particulate levels and surrounding environmental conditions to identify unhealthy conditions early on, to act quickly.

The D53 supports proactive dust management, giving sites better visibility of exposure risk to help improve workplace safety, environmental awareness, and overall control.

SENSING CAPABILITIES

MEASUREMENTS

PM1.0, PM2.5, PM4.0, PM10

AMBIENT CONDITIONS

Barometric Pressure, Humidity, Barometric Pressure

WHY IS DUST MONITORING IMPORTANT?

Airborne dust and silica particulates (specifically) pose serious risks to health and safety in industrial environments. Prolonged exposure to PM1, PM2.5, PM4, and PM10 can cause chronic respiratory disease, cancer, cardiovascular damage, and other life-threatening illnesses.

ENVIRONMENTAL MONITORING

DUST MONITOR D53

REAL-TIME RELIABLITY

Easy to read data readings and range limits displayed on a TFT display
Response time <60 secDetection limits (PM10) 0.01 to 1000mg/m3
Sensor range between 0.30µm to 10µm

ROBUST & RELIABLE

Configurable to activate automated ventilation or dust suppression system
Operating temperatures range from -20° to 50 °C

USER-FRIENDLY, LOW MAINTENANCE, EASY INSTALLATION

Up to 2 years between calibrations
Bump-test kit available
Low Maintenance and cleaning
Wireless connection
Site-specific interfacing and remote connections available
Self-cleaning/minimal maintenance: No pumps, no filters, and no user-serviceable parts.
Frequent blast action cleans dust from within the measurement chamber.
Easy to install (mobile/fixed). No on-site sensor calibration with installation

VISUAL ALERTS

Local visual indication via multi-colour LED status ring

Ambient Temperature
Humidity
Barometric Pressure
PM1
PM2.5
PM4
PM10

COMMUNICATION INTERFACES & PROTOCOL OPTIONS

Standard: RS-485 with Modbus RTU
Optional: Ethernet with PoE (IEEE 802.3) and Modbus TCP/IP
Wireless options: M3SH Private 5G
System integration: Suitable for PLC, SCADA, fire alarm, suppression and site-wide monitoring systems

MODELS

Intrinsic safe—Operating voltage: 9-48 VDC or 85-265 VAC
Non-Intrinsic safe—Operating voltage range 9-18VDC powered from an intrinsic safe power supply

Built-in heated chamber for enhanced performance in various conditions.

STANDARD CERTIFICATIONS

SANS 60079-0: 2019 – General Requirements for Equipment for Explosive Atmospheres
ISO 13849-1:2015 – Safety of Machinery – Functional Safety
IEC 61508 – Functional Safety of Electrical/Electronic/Programmable Electronic Safety-Related Systems
Certified for Group II (Surface Applications)
Certification Number: MASC M/26-8072X
Ingress Protection: IP65
