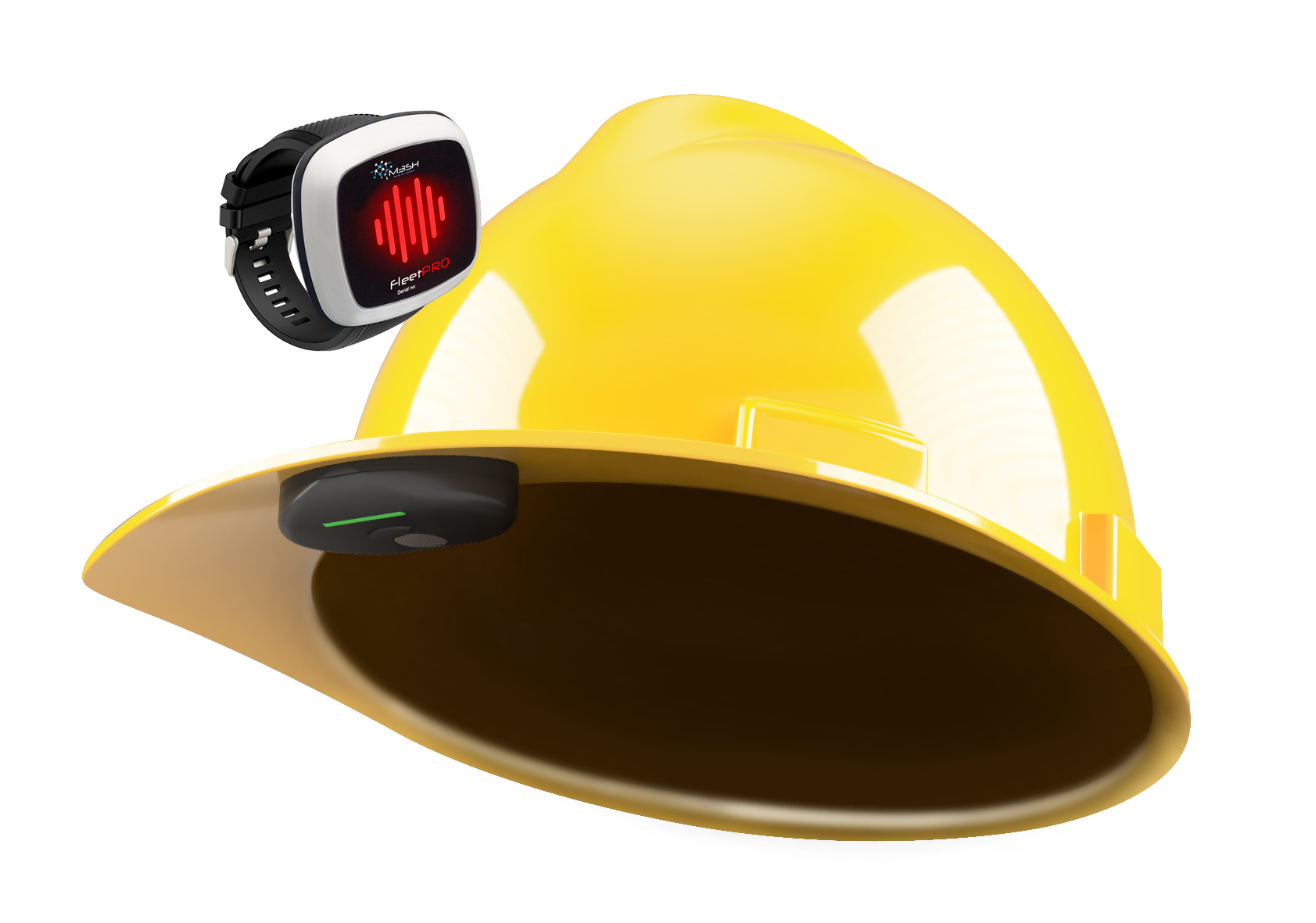

MISSING MINER SOLUTION
The Missing Miner Solution consists the Missing Miner tag and the Wearable Proximity Device. The M3SH Missing Miner Tag is a lightweight, long-life wearable device for personnel visibility, emergency alerts, and rescue response in open-pit and underground mines, and surface operations. Unlike systems that depend on Wi‑Fi, LTE, cap lamps, or collision-avoidance infrastructure, it operates as part of a self‑forming mesh network that continues functioning when other systems fail.
COLLISION AVOIDANCE & TRACKING
MISSING MINER SOLUTION

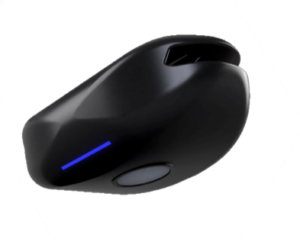

WEARABLE TAG: UNDERGROUND
The M3SH Missing Miner Underground Tag is a lightweight, long-life wearable device for emergency rescue scenarios in underground mines. Unlike systems that depend on Wi-Fi, LTE, cap lamps or collision avoidance infrastructure, the tag operates independently, so it keeps working when other systems fail.
MAIN FUNCTIONALITIES
- Missing miner response for underground mines
- Underground evacuation support
- Emergency rescue scenarios
- Worker panic alerts
- Post-incident location assistance
- Personnel status awareness in complex underground workings
- Environmental condition awareness close to the worker, where configured
RELIABLE
- Emergency-focused, not dependent on another operational system
- Suitable for low-resolution “breadcrumb” style tracking or higher-resolution operational visibility, depending on the mine’s required architecture
- Independent self-forming, self-healing mesh communication
- Long operational life with reserve capacity
- Battery life: 12 Months operational + 6 Months reserve capacity
PANIC BUTTON & VISUAL ALERTS
- Panic button for Immediate emergency alert transmission
- Tri-Colour LED Indicator (Red / Green / Blue)
- Status indication
- Can be remotely activated from Control Room
USER FRIENDLY
- Lightweight (<40g) and easy to mount under hard hat brim or safety vest
COMPLIANCE RELAVANCE
- Unique ID per miner
- Continuous broadcast
- Immediate distress signaling
- Environmental awareness enhancement
MODELS
- Intrinsic safe version available for hazardous areas
SENSING CAPABILITIES:
1. BASIC
- Temperature
- Humidity
- Barometric pressure
2. STANDARD
- Air quality index
- Temperature
- Humidity
- Inertia motion unit (IMU)
3. PREMIUM
- Air quality index
- Temperature
- Humidity
- Barometric pressure
- Carbon dioxide (CO2)
- Volative organic compounds (VOCs)
- Inertia motion unit (IMU)
WEIGHT
- <40g
MODELS
- Intrinsic safe version available for hazardous areas
WEARABLE TAG: GROUND & OPEN PIT
The wearable tracker tag is a lightweight, GNSS-enabled wearable device that supports personnel visibility, emergency alerts and rescue response in open pit mines and surface operations. It provides a dedicated safety layer independent from collision avoidance systems, and it provides continuous personnel identification.
MAIN FUNCTIONALITIES
- GNNS Enabled location
- Independant missing miner response for open pit and ground level environments (mines, construction, industrial workplaces)
- Emergency response and evacuation support (including evacuation notifications from control room to wearer)
- Worker status (including visible status indication) & panic button alerts transmission to control room
- Lone worker and remote work area support
- Environmental monitoring close to the worker, where configured
RELIABLE
- Emergency-focused, inependant from other operational system
- Independent self-forming, self-healing mesh communication
- Battery life: 72 hours
PANIC BUTTON & VISUAL ALERTS
- Panic button for Immediate emergency alert transmission
- Tri-Colour LED Indicator (Red / Green / Blue)
- Status indication
- Can be remotely activated from Control Room
USER FRIENDLY
- Lightweight (<40g) and easy to mount under hard hat brim or on safety vest
- Easy inductive charging
COMPLIANCE RELAVANCE
- Unique ID per miner
- Continuous broadcast
- Immediate distress signaling
- Environmental awareness enhancement
MODELS
- Intrinsic safe version available for hazardous areas
SENSING CAPABILITIES:
1. BASIC
- Temperature
- Humidity
- Barometric pressure
2. STANDARD
- Air quality index
- Temperature
- Humidity
- Inertia motion unit (IMU)
3. PREMIUM
- Air quality index
- Temperature
- Humidity
- Barometric pressure
- Carbon dioxide (CO2)
- Volative organic compounds (VOCs)
- Inertia motion unit (IMU)
MODELS
- Intrinsic safe version available for hazardous areas
- Open pit mines
- Surface mine operations
- Stockyards and processing plants
- Tailings and remote work areas
- Construction and heavy industrial environments
- • Emergency response and evacuation support

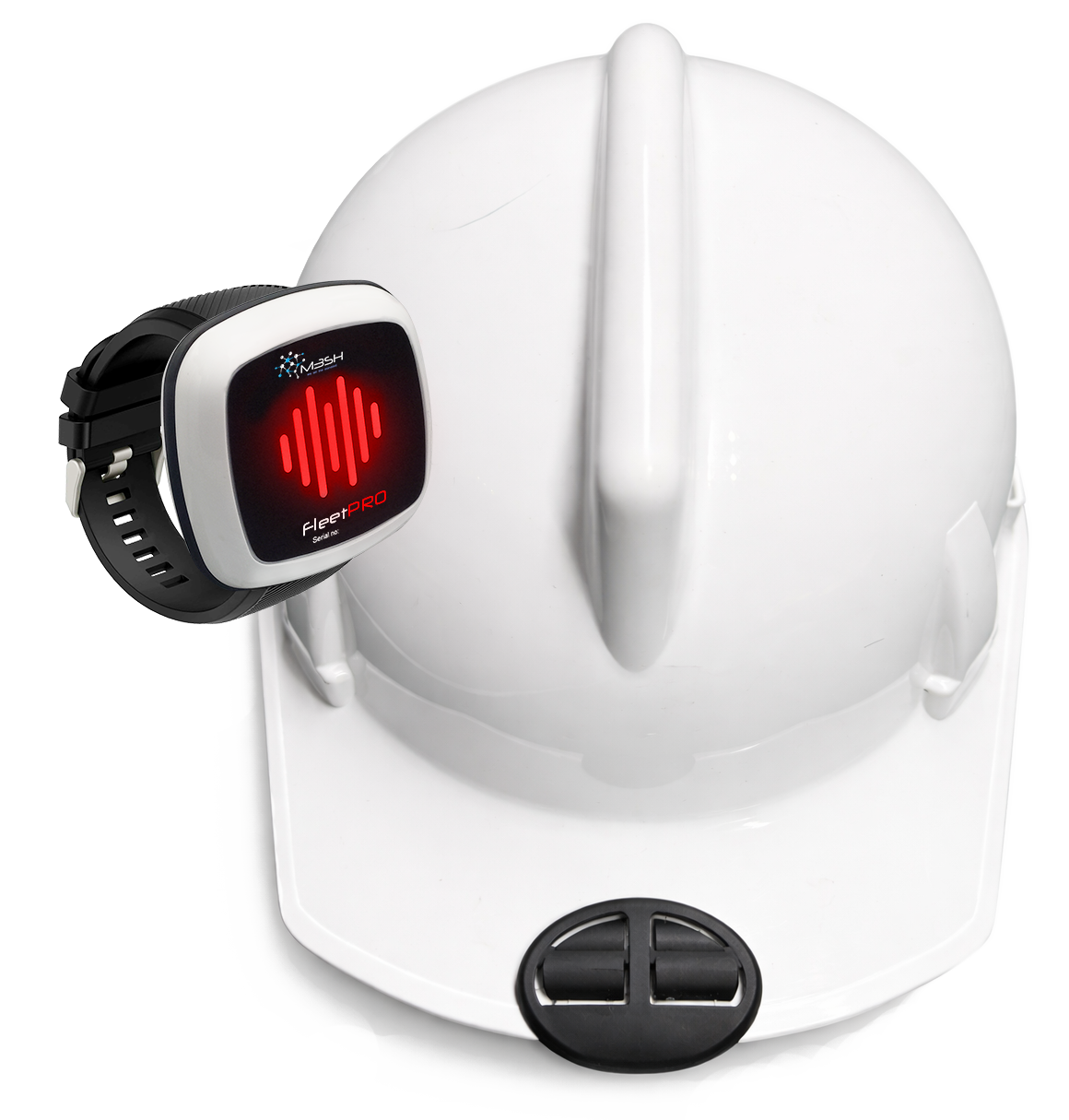

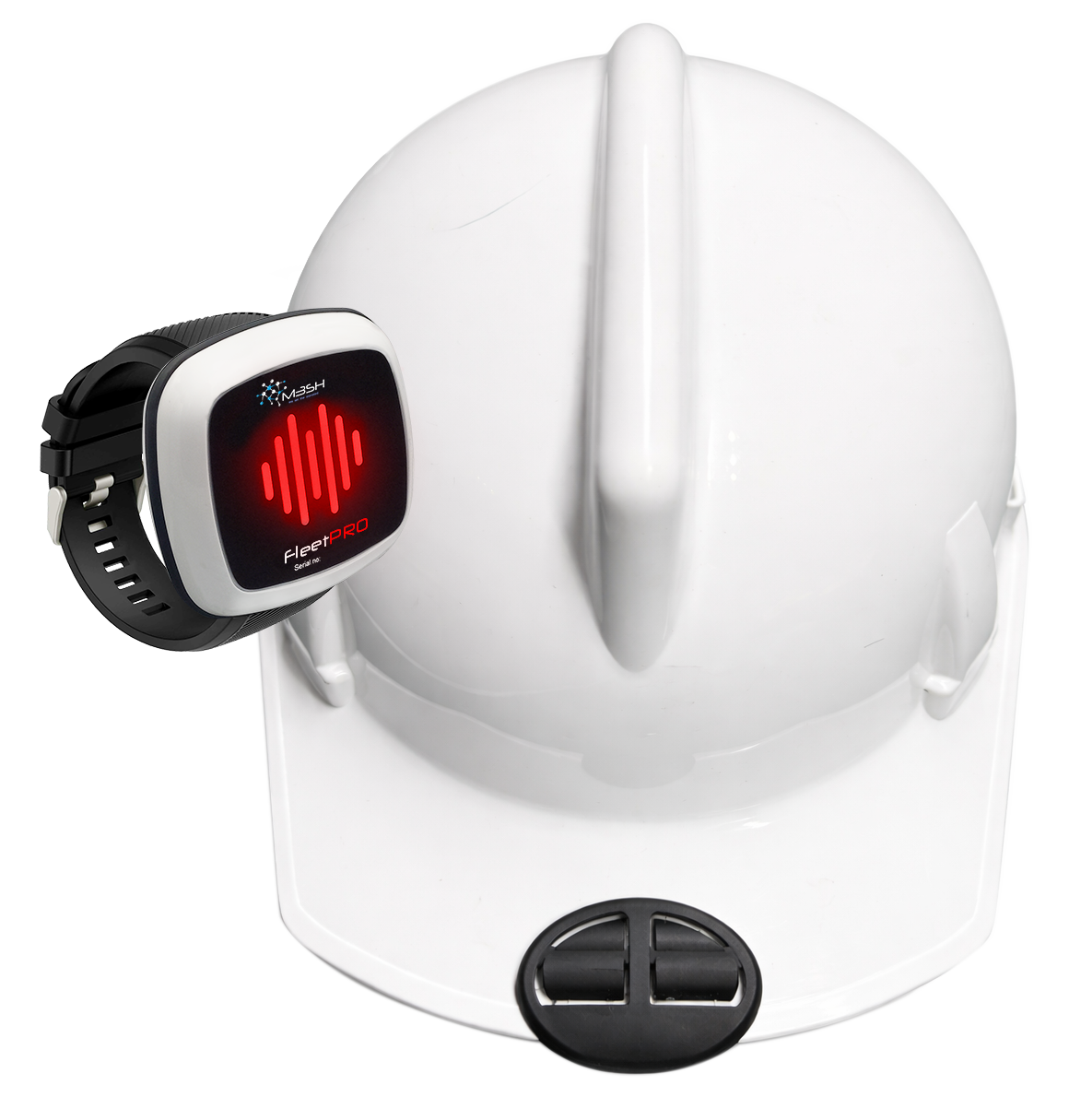

WEARABLE PROXIMITY DETECTION DEVICE
Wrist-wearable emergency verification and search functionality (Redundancy Layer) device. Able to detect tags through obstacles and operates without network dependancy.
FEATURES
EMERGENGY VERIFICATION & SEARCH FUNCTIONALITY
- Wrist-worn device
- Direct tag scanning capability
- Can detect tags through obstacles
- Operates without network dependency
- Enables localized search in incident scenarios
COMPLIANCE RELEVANCE
- Supports missing miner search operations
- Independent of infrastructure
- Backup system for worst-case scenarios

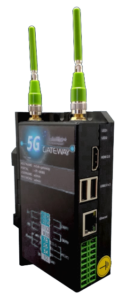

5G GATEWAY
The gateway aggregates all router data to run tag/monitor logic (missing-miner detection, signal-loss alerts, and movement history logging) and delivers time-stamped events to SCADA for centralized visibility and incident reconstruction.
FEATURES
FUNCTION
- Aggregates all router data
- Executes location (MMS Tags) and data (Monitors) logic
- Performs:
- Missing miner detection
- Signal loss alerts
- Movement history logging
- Ethernet integration to SCADA / control room
COMPLIANCE RELEVANCE
- Time-stamped event recording
- Incident reconstruction capability
- Centralized control visibility
5G ROUTER
The 5G Router makes continuous underground coverage for reliable tracking a breeze: a scalable, self-healing wireless Mesh.
FEATURES
FUNCTION
- Receives BLE / LTE broadcasts
- Performs proximity-based location mapping
- Forms part of self-healing wireless Mesh
- Provides underground coverage scalability
- Compliance Relevance:
- Continuous underground coverage
- Redundant communication paths
- Infrastructure resilience
COMPLIANCE RELEVANCE
- Continuous underground coverage
- Redundant communication paths
- Infrastructure resilience

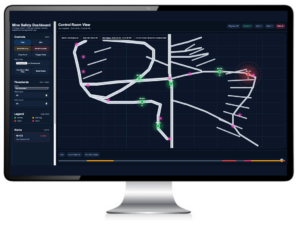

DASHBOARD
The dashboard displays real-time data on personnel location and their environmental conditions.
FEATURES
MMS DASHBOARD: BASIC
Live Monitoring
- Real-time personnel and environmental monitoring
- 2D mine map with worker location, status and tag number
- Multi-level underground visualisation support
Control & Alerts
- Send warning, evacuate, clear alert and panic commands
- Configurable thresholds with automated warnings and alarms
- Clear view of active alerts from the field
Playback & Reporting
- 24-hour playback slider to review past events and movements
- Event logging and audit-ready reporting
MMS DASHBOARD: PREMIUM
- True, near real-time Digital Twin for underground operations
- Integrates drone scans, point clouds, geological models and live sensor data
- Combines Missing Miner tags and environmental monitoring in one platform
- Single visual environment for live, historical and forecasted conditions
- Edge computing with AI-enabled analytics for faster decision support
- Advanced visualisation, trend analysis and operational insights
- More than a data repository — a tool for action, planning and risk reduction
